Automations¶

← Documentation · Deutsch

Your board is fast enough for automations that happen while you play. The light flashes the moment the third dart of a 180 lands, and the speaker calls the score before you reach the board.

On this page: Blueprints · Blueprint settings · Board events · Examples · Online matches · Adapting automations from older versions

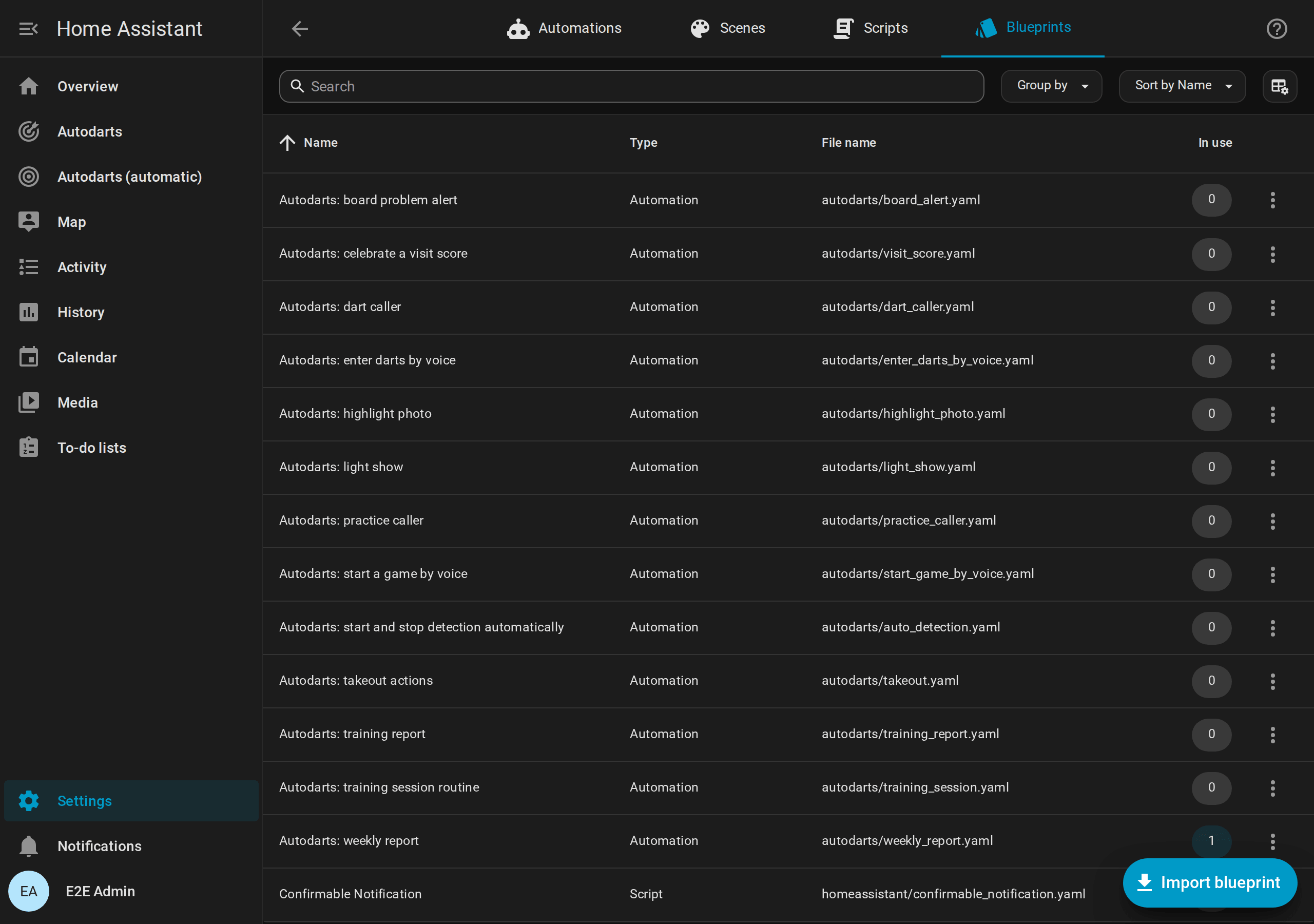

Blueprints¶

Blueprints are ready-made automations. Import one, choose your board and the devices to use, and you're done. They require Home Assistant 2026.8 or newer, and they follow the current version of the integration: update both together.

Blueprint	What it does	Import
Celebrate a visit score	Runs your actions for visits from a minimum score (default 180), the moment the third dart lands. The actions can use `score`, `darts`, `segments` and `game`. The bot's visits count only if you ask for them.
Dart caller	Announces every visit on your speakers with any text-to-speech engine, with a special message for 180, and optionally every dart. It stays silent during a practice game, which the practice caller calls. The messages are templates.
Takeout actions	Runs actions when you start pulling darts and when the board is clear, for example to brighten the board light.
Start and stop detection automatically	Starts the detection when someone is at the board and stops it after an idle time you choose, so the cameras and board PC can rest.
Board problem alert	Alerts you after a grace period when the board goes offline or a camera fails. An optional all-clear is sent only after a real alert. The actions can use `problem` and `recovered`.
Training report	Sends a daily summary of darts, 3-dart average, highest visit and 180s, skipping days without darts. The `summary` variable has the sentence ready.
Training session routine	When a training session starts, runs your actions, turns on the detection and calibrates the cameras after a short wait; when it ends, turns off the detection and runs your actions with `reason`, `darts`, `average` and `duration_minutes`. The detection switch and the calibration button are optional.
Practice caller	Calls the practice game on your speakers: "Sam, you require 81" when a checkout is possible, "No score" after a bust, the game shot of a leg or the match, and optionally the score to leave when no checkout is possible and the bull-off. The messages are templates.
Weekly report	Sends your training week when the board ends it, by default on Monday at midnight: darts, training time, sessions, the 3-dart average and its change since the week before, best visit, 180s, checkout rate, streak and new personal bests. The message is a template; by default the report appears in Home Assistant's notifications.
Highlight photo	Takes a picture with a board camera after a visit of at least 180 points (adjustable) or a checkout of the practice game, while the darts are still in the board. It saves the picture to the highlight gallery and runs your actions, which can use `photo_url`, `photo`, `image`, `message`, `score`, `checkout` and `who`.
Light show	Plays your light effects, such as WLED presets or room lights, for a 180, a high finish, a bust, a won leg or match, a personal best, the daily goal, a won bull-off, an achievement and the winner of a tournament, and optionally during the takeout and in online matches. It can restore your lights afterwards and pause the detection while an effect plays.
Start a game by voice	Starts a practice game when you tell Assist, for example "Start 501 for Alex and Sam", "Start the game Cricket for Alex" or "Play 501 against the bot", in English, German, Spanish, French or Dutch. Assist answers with the game and the players, or with what was wrong.
Enter darts by voice	Enters the darts of a game when you tell Assist, as at a dart machine: the score of a visit, such as "Alex has 140" or "140 points", a checkout, a single dart such as "Triple 20", the next player and undo, in English, German, Spanish, French or Dutch. Assist answers in the words of the scoreboard's caller: what the visit left and who throws next, or why it was refused.

Without My Home Assistant, go to Settings → Automations & scenes → Blueprints → Import blueprint and paste the link to the file in blueprints/automation/autodarts. To update a blueprint you imported before, choose Re-import blueprint in its menu on the blueprints page; your automations keep their settings.

Which caller?¶

Dart caller: calls every visit, in any game on the board, for example during an online match. While a practice game of the integration is played, it stays silent, so that it never talks over the practice caller. Turn off Stay silent in practice games if you don't use the practice caller.
Practice caller: calls what matters in the practice game: requirements, busts, game shots and, if you like, the bull-off.
Caller of the scoreboard card: the scoreboard calls visits and the practice game in one voice, through the browser of the screen at the board. It needs no speakers in Home Assistant.

Blueprint settings¶

Every blueprint shows these settings when you create an automation from it: select the blueprint on the blueprints page, fill in the form and save. Settings with a default are optional.

Celebrate a visit score¶

Setting	Default	What it does

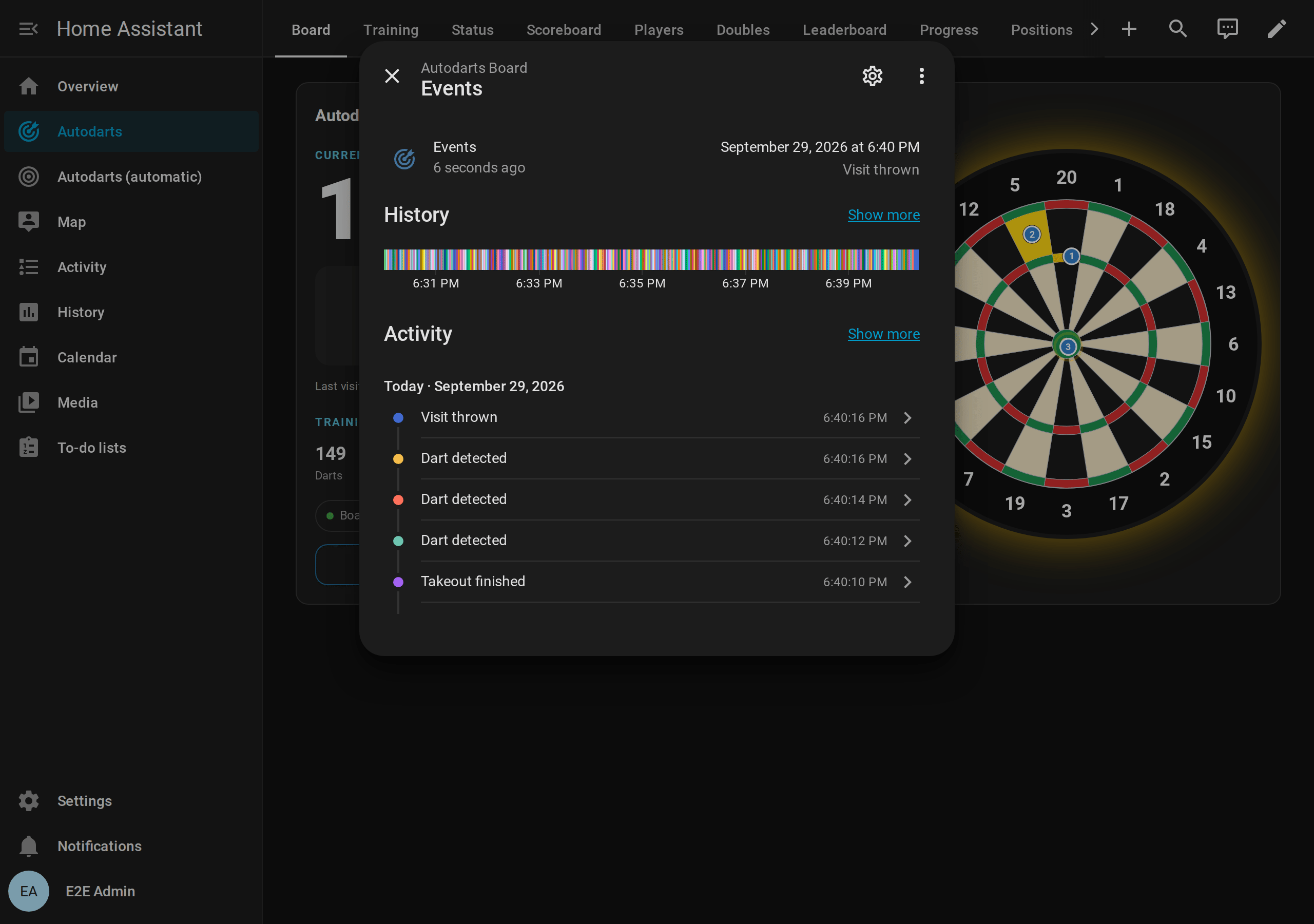

Board events		The Events entity of your board.
Minimum score	180	The lowest visit score that runs the actions. A visit of three darts counts when its third dart lands; a shorter visit when the darts are pulled.
Actions		What happens after such a visit. It can use `score`, `darts`, `segments` and `game` (the practice game, or empty).
Also for the bot	off	Also runs the actions for the visits of the practice game's bot. Its darts are not in the board, so its visits are left out by default.

Dart caller¶

Setting	Default	What it does
Board events		The Events entity of your board.
Text-to-speech engine		The engine that speaks, for example Home Assistant Cloud or Piper.
Speakers		The media players that play the calls.
Language	empty	The language of the voice, for example `en-GB`; empty uses the language of the engine.
Voice options	empty	Options of the engine, for example `voice: ...` for another voice.
Call every dart	off	Also calls each dart when it lands. The third dart is not called on its own, because the visit follows right away.
Stay silent in practice games	on	Leaves the calls to the practice caller while an X01, Cricket or party game of the integration is played.
Visit message	`{{ score }}`	Said after a visit. It can use `score`, `darts` and `segments`.
Message for 180	`One hundred and eighty!`	Said instead of the visit message after a 180.
Dart message	`{{ dart_name }}`	Said for each dart. It can use `dart_name` (such as `Treble 20`, `5`, `Bull` or `Miss`), `segment` (such as `T20`), `dart_score` and `dart_index`.

An empty message stays silent.

Takeout actions¶

Setting	Default	What it does
Board events		The Events entity of your board.
When the takeout starts	none	Runs when a hand reaches the board to pull the darts.
When the board is clear	none	Runs when all darts are out of the board.

Fill in at least one of the two.

Start and stop detection automatically¶

Setting	Default	What it does
Presence		Any on/off entity that is on while someone is at the board: an occupancy sensor, the room light or an input boolean.
Detection switch		The Detection switch of your board.
Stop after	10 minutes	How long the presence has to be off before the detection stops.

Don't combine this blueprint with a detection switch in the training session routine: both would switch the detection.

A detection you start by hand while the presence is off keeps running. A restart of Home Assistant forgets how long the presence has been off: if nobody is there and the detection runs when Home Assistant starts, the detection stops after Stop after, also one you started by hand. Saving the automation starts the wait over, too, also the wait after a restart, but leaves a detection you started by hand running; saving other automations changes nothing.

Board problem alert¶

Setting	Default	What it does
Board connection		The Local connection sensor of your board.
Camera problem		The Camera problem sensor of your board.
Grace period	2 minutes	How long a problem has to last before the alert, so that a Board Manager restart or a short calibration stays quiet.
Alert actions		For example a notification to your phone. `problem` is `offline` or `cameras`.
Recovery actions	none	Run when a problem you were alerted about is gone, with `recovered` set to `true`.

A problem also counts when it starts while the sensor is unavailable, for example a camera that fails while the board restarts. A problem that ends while the board is offline gets no all-clear of its own. If the board was offline for longer than the grace period, the all-clear of the connection follows; after a shorter restart, a camera problem that the restart solved stays without an all-clear.

A restart of Home Assistant forgets the grace periods: a problem the board has when Home Assistant starts alerts after the grace period, even if it alerted before the restart, and its all-clear follows as usual. Saving the automation keeps a problem that has not alerted yet, whose grace period was running or whose alert an earlier save was waiting for, and it alerts after a new grace period; a problem that alerted already stays quiet. Saving other automations changes nothing.

What this blueprint and the automatic detection do when Home Assistant starts:

Training report¶

Setting	Default	What it does
Time	21:00	When the report is sent. Choose a time late in the day: darts count for the day on which they are thrown.
Minimum darts	1	Skips the report when fewer darts were thrown today.
Training darts		The Training darts sensor of your board.
Training 3-dart average		The Training 3-dart average sensor of your board.
Training highest visit		The Training highest visit sensor of your board.
Training 180s		The Training 180s sensor of your board.
Actions		For example a notification with `summary`. They can also use `darts`, `average`, `highest`, `scores_180` and `darts_today`.

A finished session keeps its totals until the next one starts, so the report checks the Darts today sensor of the same board and skips days without darts. If that sensor is disabled, the darts of the session decide. To start a new session every day, add New training session of your board as the last action.

Training session routine¶

Setting	Default	What it does
Board events		The Events entity of your board.
Detection switch	none	Turned on when a session starts and off when it ends.
Calibration button	none	The Start automatic calibration button, pressed after the detection has started. It is skipped when the first dart started the session, because that dart is still in the board.
Wait before calibrating	5 seconds	Gives the cameras time to open.
When a session starts	none	Runs first, for example to switch on the board light. The board is prepared even if one of these actions fails.
When a session ends	none	Runs after the detection has stopped, with `reason`, `darts`, `average` and `duration_minutes`.
Run for a new training session	off	New training session ends a session and starts the next one at once, for example every morning by an automation. By default the board keeps running then; turn this on to run the whole routine.

Leave the calibration button empty when the board's Calibrate on start setting is on: the board calibrates by itself when the detection starts. Don't combine a detection switch here with the blueprint that starts and stops the detection automatically.

Practice caller¶

Setting	Default	What it does
Board events		The Events entity of your board.
Text-to-speech engine, Speakers, Language, Voice options		As in the dart caller.
Checkout possible	`{{ who ~ ', you' if who else 'You' }} require {{ remaining }}`	Said when the next visit can finish the leg.
No checkout, a setup	empty	Said when the next visit cannot finish the leg but can leave a finish, with `leave` and `setup`, for example `{{ who ~ ', leave' if who else 'Leave' }} yourself {{ leave }}`. Empty uses the Next player message.
Next player	empty	Said when the next visit cannot finish the leg. Empty stays silent.
Bust	`No score`	Said when a dart busts the visit.
Leg won	`Game shot, and the leg{{ ', ' ~ (team or who) if team or who }}!`	Said when a dart wins a leg that does not decide the match; in a team match with the team's name.
Match won	`Game shot, and the match, {{ team or who }}!`	Said when a dart decides the match; in a team match with the team's name.
Leg won on the round limit	`Round limit, and the leg{{ ', ' ~ (team or who) if team or who }}!`	Said when the last round of an X01 leg with a round limit ends without a checkout and the lowest score wins a leg that does not decide the match, with `rounds` and the `remaining` score of the winner.
Match won on the round limit	`Round limit, and the match{{ ', ' ~ (team or who) if team or who }}!`	Said when the round limit decides the match.
Bull-off throw	empty	Said when the next player throws for the bull, for example `{{ who }}, throw for the bull`. The first player of the bull-off is not called. Empty uses the Next player message.
Bull-off won	empty	Said when the bull-off decides who starts, in one call with the first call of the match, for example `{{ who }} to throw first. Game on!`. Empty stays silent.
Word for a player without a name	`Player`	Makes "Player 2" in a match without names.
Word for the bot	`Bot`	The name of the practice game's bot in `who`, as the scoreboard shows it, for example "Bot, you require 40".

The first visit of a game is not called, because a game starts without a change of turn. With a bull-off, the call of the winner starts the game instead.

Weekly report¶

Setting	Default	What it does
Board events		The Events entity of your board.
Minimum darts	1	Skips the report of a week with fewer darts, for example a week on holiday. With 0, every week is reported.
Title	`Your darts week`	The title of the notification, available as `title`.
Message	`{{ summary }}`	The text of the notification, available as `message`.
Notification actions	a notification in Home Assistant	How the report is sent, for example to your phone, see below.

The message can use darts, visits, sessions, training_minutes, average, average_change, highest_visit, scores_180, checkout_rate, legs, matches, streak, daily_goals, personal_bests (how many were set), week_start, week_end and summary, a ready-made summary in English. The board ends the week at its Weekly report day and Weekly report time, by default on Monday at midnight.

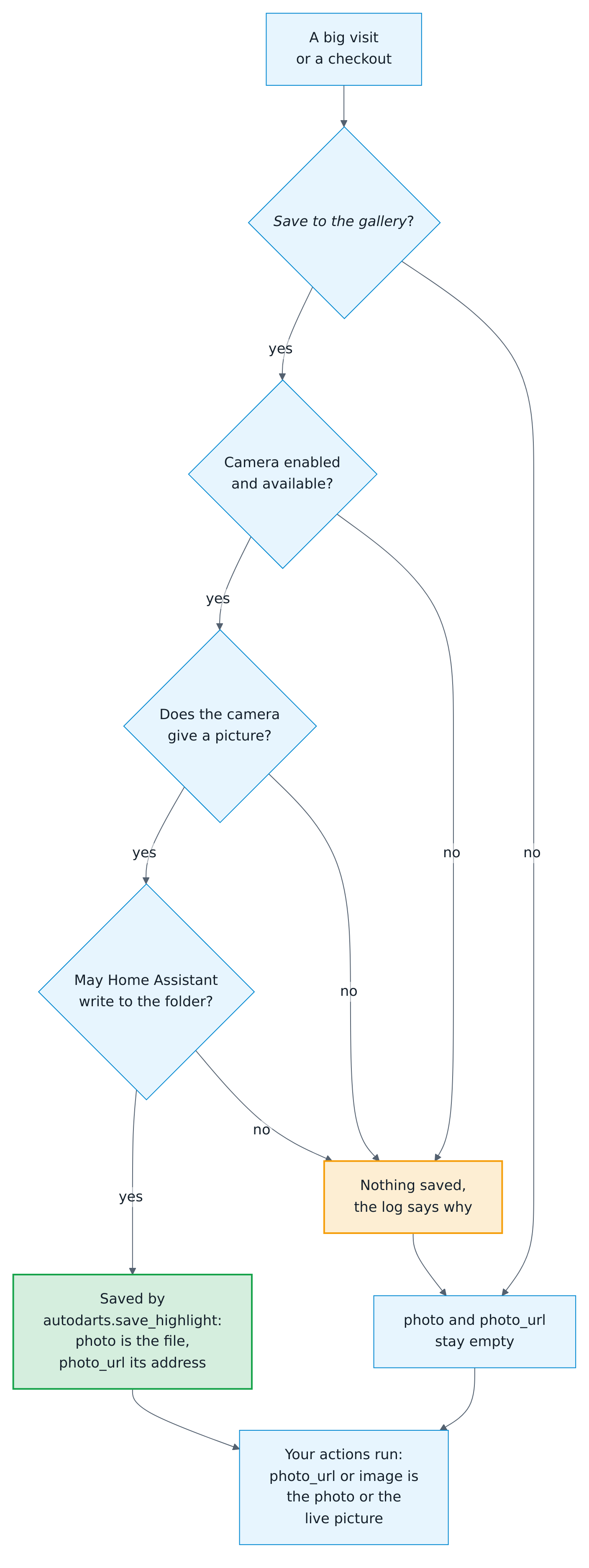

Highlight photo¶

Setting	Default	What it does
Board events		The Events entity of your board.
Camera		The board camera that takes the photo. Enable the camera entity first; camera entities are disabled by default.
Visits from	180	A visit with at least this score gets a photo when its third dart lands.
Checkouts	on	Also a photo when a practice leg is won with a checkout. When the same dart finishes a visit and a leg, you get one photo, with the checkout message.
Save to the gallery	on	Saves every photo with `autodarts.save_highlight`, by default to the highlight gallery of the media browser.

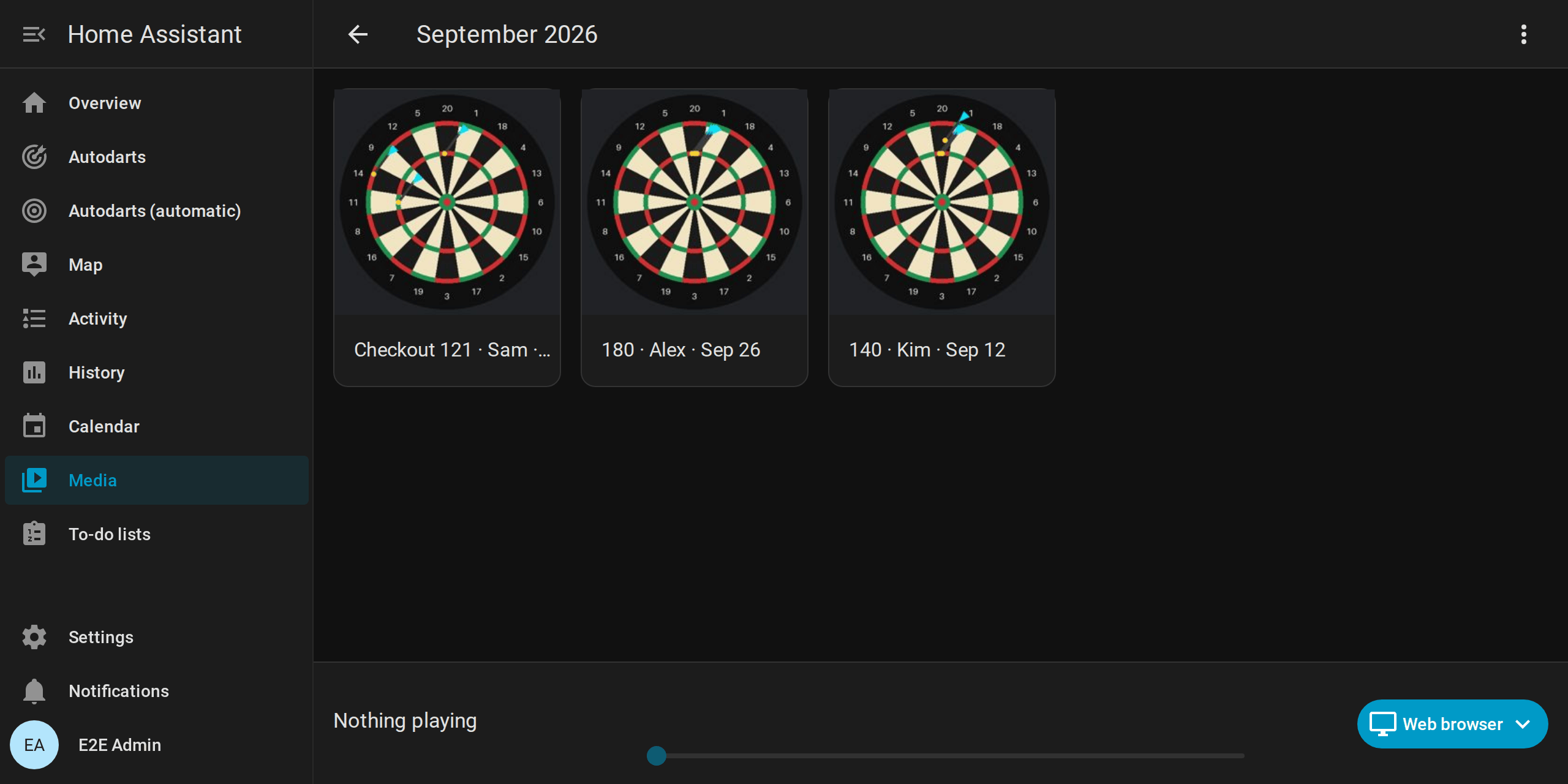

Folder	empty	Empty for the highlight gallery: `autodarts/highlights` in the media folder, `/media/autodarts/highlights` on Home Assistant OS and in a container, `/config/media/autodarts/highlights` in other installations. Another folder must be one Home Assistant may write to, such as `/media/darts` on Home Assistant OS or a folder of `allowlist_external_dirs`; outside the media folder, a photo has no `photo_url`.
Actions	none	For example a notification, see below. Optional while the photos go to the gallery.
Message for a visit	`{{ score }}!`	The `message` of a visit photo.
Message for a checkout	`Checkout {{ checkout }}{{ ' by ' ~ who if who }}!`	The `message` of a checkout photo.

Your actions can use:

photo_url: the address of the saved photo, for a notification of the Home Assistant app, for example /media/local/autodarts/highlights/2026-09-26_21-05-33_Alex_180.jpg.
photo: the file the picture is saved to.
image: the live picture of the camera, for photos that are not saved.
message, score, checkout and who (the player at the board, when the practice game names them).

photo and photo_url are empty when no photo was saved: Save to the gallery is off, the camera entity is disabled or unavailable, the camera gives no picture, or Home Assistant may not write to the folder. The log of Home Assistant then says which of them it was. photo_url is also empty for a folder outside the media folder, which the app cannot load from. So photo_url or image is always a picture: the saved photo, or the live picture of the camera.

The blueprint needs version 1.12.4 or later of the integration, which brings autodarts.save_highlight. Earlier versions of the blueprint saved with camera.snapshot, which also announced a photo that was never written; choose Re-import blueprint in its menu on the blueprints page for the new one, and your automation keeps its settings.

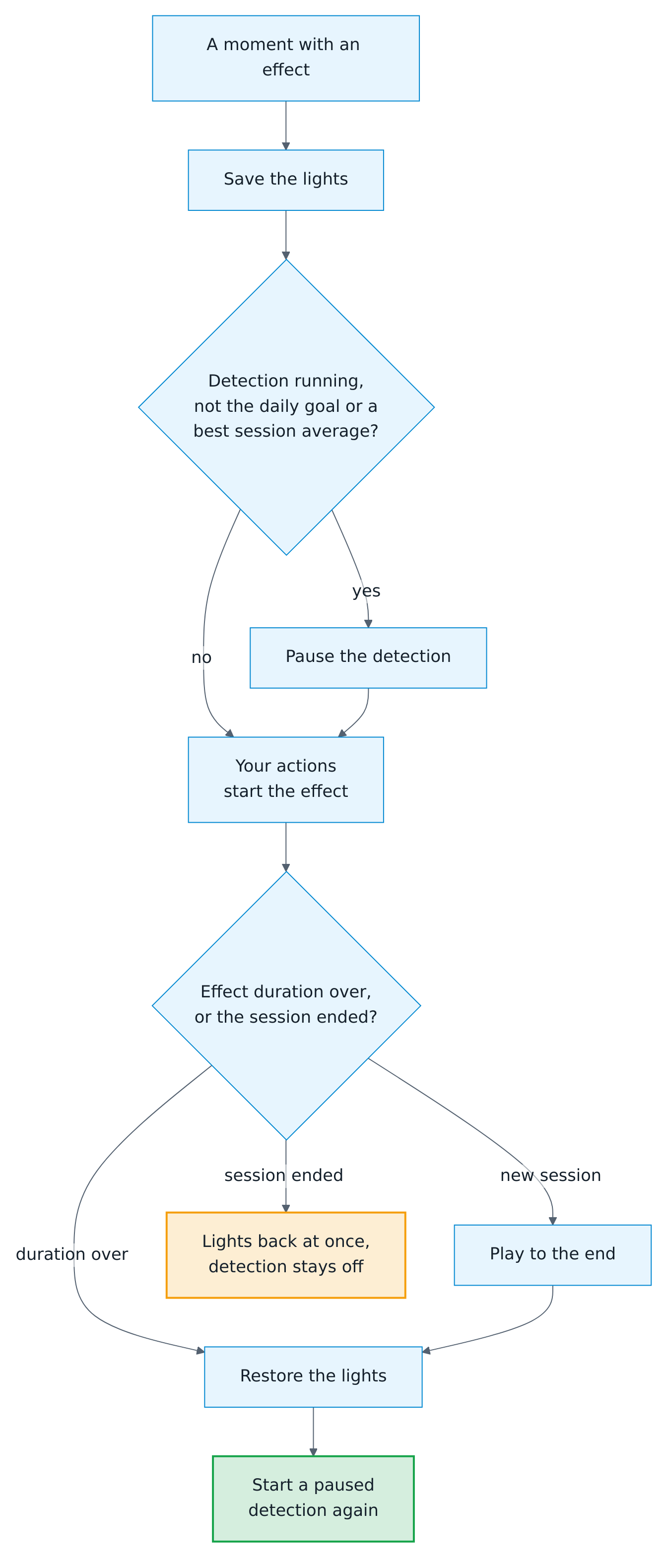

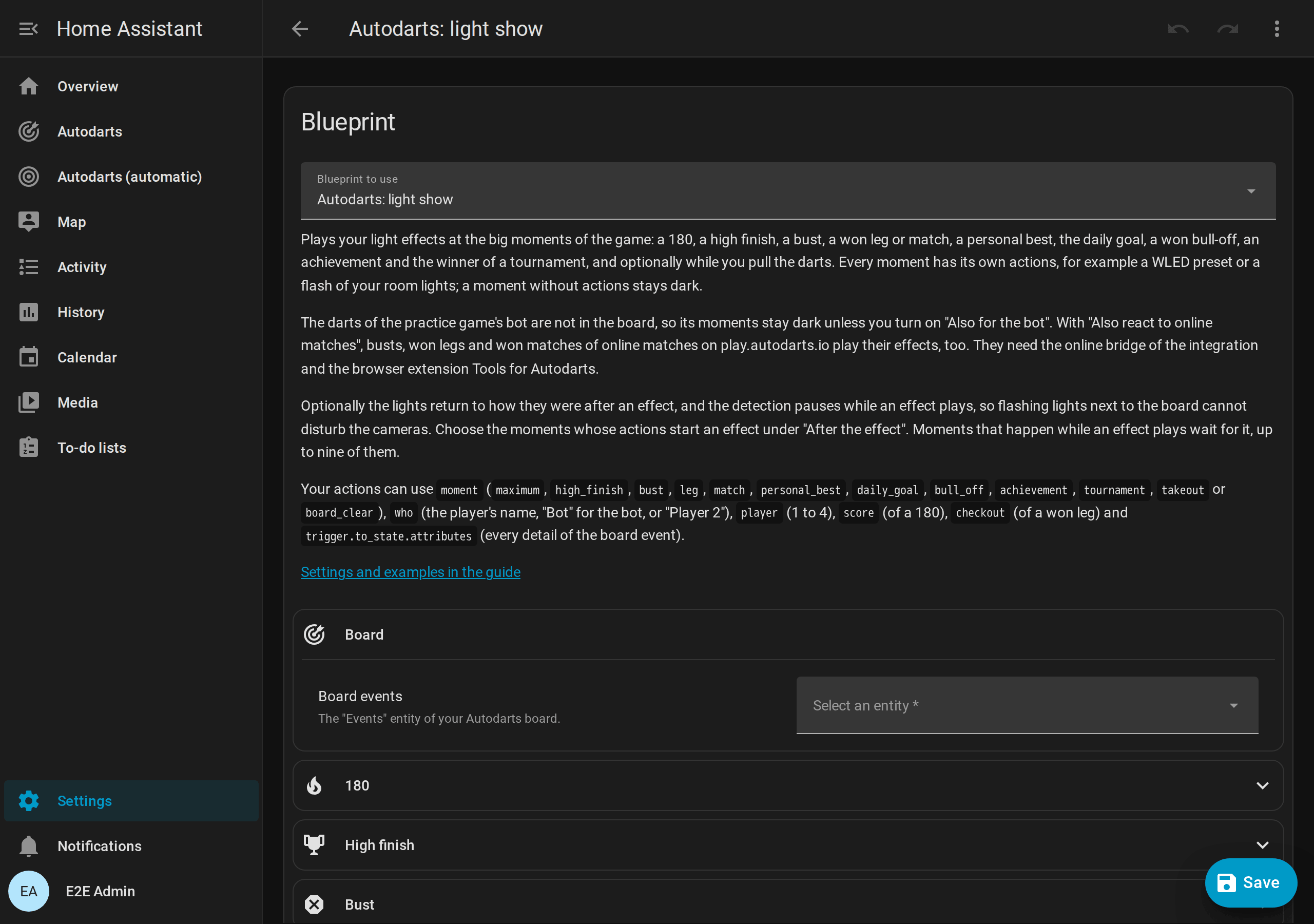

Light show¶

Setting	Default	What it does
Board events		The Events entity of your board.
Actions for a 180	none	Run the moment the third dart of a 180 lands.
High finish from	100	A practice leg won with a checkout of at least this score is a high finish.
Actions for a high finish	none	Run for a high finish, instead of the actions for a won leg.
Actions for a bust	none	Run when a dart of the practice game busts the visit.
Actions for a won leg	none	Run when a dart wins a practice leg. The leg that decides a match plays the actions for the match instead.
Actions for a won match	none	Run when a dart decides a practice match.
Actions for a personal best	none	Run when a value beats your personal best.
Actions for the daily goal	none	Run when today's darts reach the daily goal.
Actions for a won bull-off	none	Run when the bull-off decides who starts.
Actions for an achievement	none	Run when a named player unlocks a new tier of an achievement.
Actions for a won tournament	none	Run when the last match of a tournament counts, after the actions for the won match; `who` is the winner of the tournament.
React to the takeout	off	Runs the two actions below while you pull the darts. Leave it off without them, so that takeouts never wait behind an effect.
When the takeout starts	none	Run when a hand reaches the board. Not restored.
When the board is clear	none	Run when all darts are out of the board. Not restored.
Also for the bot	off	Also plays the moments of the practice game's bot: its 180, bust, won leg or match and won bull-off. A leg or match the bot wins in a team match plays anyway, because its partner at the board wins it, too.
Word for the bot	`Bot`	The bot's name in `who`.
Word for a player without a name	`Player`	Makes "Player 2" in `who`.
Moments with an effect	none	The moments whose actions start an effect. Only for them are the lights restored and the detection paused.
Restore these lights	none	Their state is saved before an effect and restored after it.
Effect duration	10 seconds	How long an effect plays before the lights are restored and the detection starts again. A training session that ends meanwhile ends the effect at once and leaves the detection off.
Pause the detection during effects	off	Turns the detection off while an effect plays and on again afterwards, if it was on. The daily goal never pauses it, because it is reached in the middle of a visit, and neither does a new best session average, which comes when a training session ends.
Detection switch	none	The Detection switch of your board, for pausing it.
Also react to online matches	off	Also plays the actions for a bust, a won leg and a won match of an online match. A 180 and the takeout of your own darts come from your board anyway.

The actions can use moment (maximum, high_finish, bust, leg, match, personal_best, daily_goal, bull_off, achievement, tournament, takeout or board_clear), who (the player's name, the word for the bot, or "Player 2"), player, score (of a 180), checkout (of a won leg) and trigger.to_state.attributes for every detail of the board event. See light show with WLED and other lights.

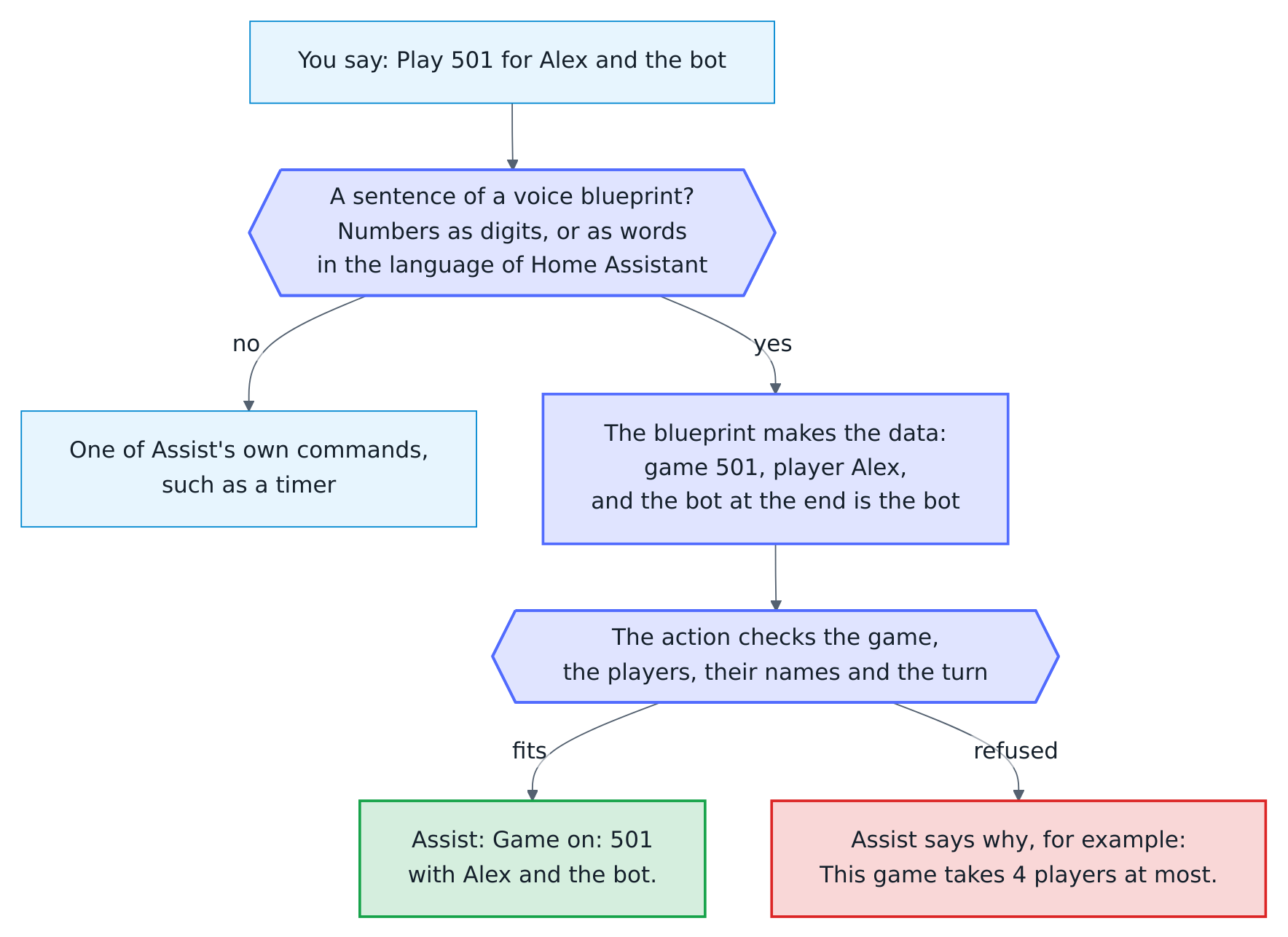

Start a game by voice¶

Setting	Default	What it does
Sentences	In five languages	What you say to Assist. `{game}` is the game and `{players}` the players; parts in [brackets] are optional, (a\|b) means a or b.
Bot level	60	The 3-dart average the bot plays when a sentence ends in "bot".
Board		The board to play on. Needed only with more than one board.

Say for example:

"Start 501 for Alex and Sam", "Play 301 with Alex, Sam and Kim" or "Start five hundred one"
"Start the game Cricket for Alex and Sam", "Play a game of Around the Clock"
"Start 501 for Alex against the bot", "Play 501 for Alex and the bot", "Play the game Cricket against the bot"
in German "Starte 501 für Alex und Sam", "Starte das Spiel Doppeltraining" or "Spiele 501 gegen den Bot"
in Spanish "Juega 501 para Alex y Sam", "Juega una partida de Around the Clock" or "Juega 501 contra el bot"
in French "Lance 501 pour Alex et Sam", "Lance la partie Cricket pour Alex" or "Joue 501 contre le bot"
in Dutch "Speel 501 voor Alex en Sam", "Start het spel Dubbeltraining" or "Speel 501 tegen de bot"

Assist answers "Game on: 501 with Alex and Sam." in the language of Home Assistant, or says what was wrong, such as a game it does not know, Killer with one player, more players than the game takes or a name longer than 20 characters.

The game: X01 is a number from 101 to 1001, as digits or as words in the language of Home Assistant (see numbers). Every other game follows the word "game", "Spiel", "partida", "partie" or "spel" and is named as the game list shows it, in any language of the integration: "Around the Clock", "Bob's 27", "Doubles training", "Doppeltraining". The beginning of a name is enough where it fits one game alone, such as "Cut Throat".
The players: one word each, joined by "and", "und", "y", "et", "en" or a comma. A player who already has a profile keeps its spelling, even when the voice assistant writes the name in lower case. Without players, the players stay as they are.
The bot: a sentence that ends in "bot" plays against the bot, which takes a seat after the players; any other sentence starts the game without the bot. The bot is never a player, also not in "Play 501 for Alex and the bot", "Spiele 501 für Alex und den Bot", "Juega 501 para Alex y el bot", "Joue 501 pour Alex et le bot" or "Speel 501 voor Alex en de bot".
Why a number or the word "game": Assist hears the sentences of an automation before its own commands. A sentence such as "Start {game} for {players}" would also catch "Start a timer for 5 minutes", and the timer would never run. With a number or the word for a game, your other commands stay as they are, in every language.
New sentences: Home Assistant keeps the blueprint you imported, and an automation keeps the sentences you saved in it. For the sentences of a new version, choose Re-import blueprint on the blueprints page and leave Sentences at its default; sentences of your own stay as they are.

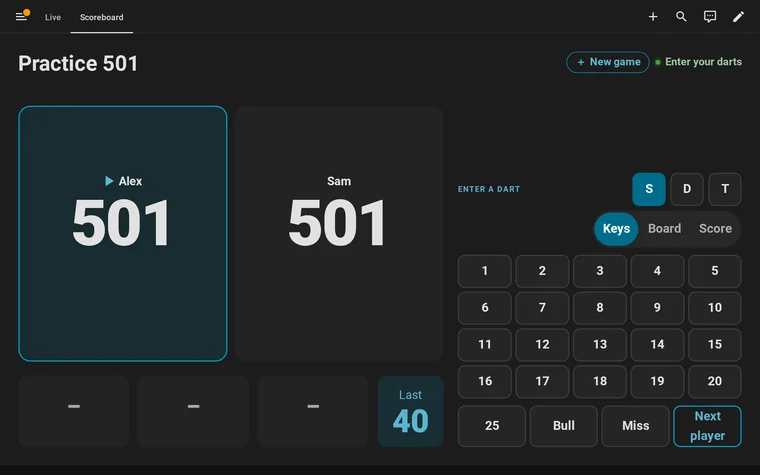

Enter darts by voice¶

Setting	Default	What it does
Score of a visit	In five languages	Sentences with the score of a visit, `{score}` from 0 to 180, and optionally the player, `{player}`; parts in [brackets] are optional, (a\|b) means a or b.
Checkout	In five languages	Sentences for a visit that checks out what the player has left, optionally with its darts, `{darts}`, and the player.
Single dart	In five languages	Sentences for one dart, with the number of its bed, `{number}`, or a bull or a miss.
Next player	In five languages	Sentences that end the visit, so the next player throws.
Undo	In five languages	Sentences that take the last visit back, to enter it anew.
Board		The board to enter the darts on. Needed only with more than one board.

Say for example:

"Alex has 140", "Sam scored 100", "140 points" or just "one hundred forty", for the score of a visit
"Checkout with two darts", "Game shot in three darts" or "Alex checks out"
"Triple 20", "Double 16", "Single 5", "Bull", "Single bull" or "Miss"
"Next player" and "Undo"
with Home Assistant in German "Alex hat 140", "Aufnahme 100", "Checkout mit zwei Darts", "Doppel 16", "Fehlwurf", "Nächster Spieler" or "Rückgängig"
with Home Assistant in Spanish "Alex hace 140", "Tirada 100", "Cierre con dos dardos", "Doble 16", "Fallo", "Siguiente jugador" or "Deshacer"
with Home Assistant in French "Alex a fait 140", "Volée 100", "Checkout en deux fléchettes", "Double 16", "Raté", "Joueur suivant" or "Annule la dernière volée"
with Home Assistant in Dutch "Alex heeft 140", "Beurt 100", "Uitgooi met twee darts", "Dubbel 16", "Mis", "Volgende speler" or "Ongedaan maken"

Assist answers in the words of the scoreboard's caller, in the language of Home Assistant: "140 for Alex, 361 left. Sam, you require 501." after a visit, "Triple 20, 441 left." after a dart, "No score: Alex stays at 40." after a bust, "Game shot, and the match, Alex!" after the last visit, "Taken back: 140 of Alex." after an undo, or why it was refused.

Manual entry: the darts need Practice manual entry, which a dartboard without Autodarts has on always. On a board with Autodarts, switch it on for a player without cameras or for darts the board missed.
The player: a sentence with a name enters the visit only while that player is at the board. "Sam scored 100" while Alex throws is refused with "It is Alex's turn, not Sam's.", so a misheard visit never counts for the wrong player. Without a name, the visit is for the player at the board.
The checkout scores what the player has left, with three darts unless the sentence says fewer, one of them at a double. What cannot be checked out, such as 169, is explained.
A dart: the darts of a visit end with "Next player", as on the keypad. A dart that checks out says "Game shot!", and the next player then calls the leg or the match.
A number alone is the score of a visit, not a dart: "twenty" enters a visit of 20; say "Single 20" for a dart.
Other commands: each sentence is a number or has words of darts, so Assist's own commands, such as "What time is it", stay its own.
Languages: the sentences are in English, German, Spanish, French and Dutch, and Assist answers in the language of Home Assistant. In another language, replace them with your own and keep the words of the beds: triple, double, doble or dubbel, single bull, bull, and miss, raté, fallo or mis.
New sentences: an automation keeps the sentences you saved in it. For those of a new version, choose Re-import blueprint on the blueprints page and leave the sentences at their default.

Numbers by voice¶

Both voice blueprints understand numbers as digits in every language. Numbers in words follow the language of Home Assistant and are written out in full, as Assist knows them:

Home Assistant in	Say	Not
English	"one hundred forty", "five hundred one", "two darts"	"one hundred and forty"
German	"einhundertvierzig", "fünfhunderteins", "zwei Darts"	"hundertvierzig"
Spanish	"ciento cuarenta", "quinientos uno", "dos dardos"	"ciento y cuarenta"
French	"cent quarante", "cinq cent un", "deux fléchettes"	"cinq cent et un"
Dutch	"honderdveertig", "vijfhonderdeen", "twee darts"	"honderd veertig"

So "Checkout mit zwei Darts" needs Home Assistant in German and "Checkout with two darts" Home Assistant in English, while "Checkout mit 2 Darts" and "Checkout with 2 darts" work in both.

How Assist answers a sentence of the voice blueprints:

Dart caller messages¶

The messages of the dart caller are templates. For example:

Setting	Example
Visit message	`{{ score }}`, or `{{ score }} points`
Message for 180	`One hundred and eighty!`
Dart message	`{{ dart_name }}` says "Treble 20", "5", "Bull" or "Miss"; `{{ dart_score }}` says the points

For a German caller, see the German guide.

Practice caller messages¶

The practice caller's messages are templates with these variables:

Variable	Content
`who`	The player's name, "Bot" for the bot (see Word for the bot), "Player 2" in a match without names, empty when you play alone
`team`	The team of the player in a team match, for example `Alex & Kim` when both partners have a name; empty otherwise
`remaining`	The score left
`checkout`	The route when a checkout is possible, for example `T20 T20 BULL`; in Leg won, the score checked out, for example `121`
`darts`, `average`	Darts and 3-dart average of the leg, in Leg won
`rounds`	The rounds of a leg the round limit decided, in Leg won on the round limit and Match won on the round limit, with the winner's score left in `remaining`; `0` for a checkout
`points`	Points in the Cricket and party games; strokes in Golf, runs in Baseball. Killer keeps no points: its events carry the player's `lives` and whether they are a `killer`, for example `trigger.to_state.attributes.lives`
`target`	The next target of a party game, for example `20`, `D` or `D16`; the hole in Golf and the inning in Baseball
`leave`, `setup`	Where no checkout is possible: the score a setup leaves, for example `32`, and its darts, for example `T20 T20 S17`; empty otherwise
`hit`	The bed of the winning bull-off dart in Bull-off won: `BULL`, `25` or for example `S20`
`distance`	How far the winning bull-off dart landed from the center, in millimeters, in Bull-off won; empty when the board reported no position for it, never `None`

For example:

Setting	Example
Checkout possible	`{{ who ~ ', you' if who else 'You' }} require {{ remaining }}`
No checkout, a setup	`{{ who ~ ', leave' if who else 'Leave' }} yourself {{ leave }}`
Next player	`{{ who }}`, or `{{ who }}, {{ target }}` in party games
Bust	`No score`
Leg won	`Game shot, and the leg{{ ', ' ~ (team or who) if team or who }}! {{ checkout }} checkout in {{ darts }} darts.`
Match won	`Game shot, and the match, {{ team or who }}!`
Leg won on the round limit	`After {{ rounds }} rounds, the leg goes to {{ team or who }} on {{ remaining }}!`
Bull-off throw	`{{ who }}, throw for the bull`
Bull-off won	`{{ who }} to throw first. Game on!`, or `{{ who }} wins the bull{{ ' by ' ~ distance ~ ' millimeters' if distance is number }}`
Word for a player without a name	`Player`

Highlight photo on your phone¶

In Actions of the highlight photo, add a notification of the Home Assistant app and give it the picture:

action: notify.mobile_app_your_phone
data:
  message: "{{ message }}"
  data:
    image: "{{ photo_url or image }}"

The app loads the saved photo, taken while the darts were still in the board, even when the notification reaches a sleeping phone minutes later. Without a saved photo it falls back to image, the live picture of the camera, which the app loads only when the notification arrives, possibly after the darts are pulled. Enable the camera entity on the device page first; camera entities are disabled by default.

Highlight gallery¶

The highlight photo saves every picture as a file named by the moment, the player and the score, for example 2026-09-26_21-05-33_Alex_180.jpg or 2026-09-26_21-07-10_Alex_checkout-121.jpg; a second photo of the same second with the same name, from a second camera for example, gets a space and (2) at the end and is kept as well. Open Media → Autodarts in the sidebar: the gallery lists the months, newest first, and every photo with a title such as 180 · Alex · Sep 26.

The gallery shows the folder autodarts/highlights of the media folder of Home Assistant, which is /media/autodarts/highlights on Home Assistant OS and in a container. How the gallery works.
Photos you copy there yourself show, too; without a name of this kind, by their file name and the time they were saved.
To delete a photo, open Media → My media → autodarts → highlights.
The gallery needs the media browser, which the default configuration of Home Assistant includes.

Light show with WLED and other lights¶

Give every moment you like its own actions; moments without actions stay dark. A WLED preset that you saved in WLED as "180", for a 180:

action: select.select_option
target:
  entity_id: select.wled_preset
data:
  option: "180"

A WLED effect at full brightness, for example for a won match:

action: light.turn_on
target:
  entity_id: light.wled
data:
  effect: Fireworks
  brightness_pct: 100

Plain room lights in the color of the player who won the leg, from player 1 to 4; for a bust, rgb_color: [255, 0, 0] turns them red:

action: light.turn_on
target:
  entity_id: light.dartroom
data:
  rgb_color: "{{ [[255, 0, 0], [0, 90, 255], [0, 200, 80], [255, 200, 0]][player - 1] }}"
  brightness_pct: 100

Back to normal: choose the moments with actions under Moments with an effect, and add your lights to Restore these lights, for WLED the WLED light rather than the preset select. Before an effect, the blueprint saves their state in a scene, and after Effect duration it restores color, brightness and effect. Leave the lights empty if your actions end the effect themselves. Moments you don't choose run their actions and nothing else, so a moment without actions never pauses the board.
Pause the detection: flashing light next to the board can make the cameras see darts that are not there. Turn on Pause the detection during effects and choose the Detection switch: the detection stops for the effects of the chosen moments and starts again afterwards, but only if it was running. When the detection stops, the visit on the board counts as finished, as after a takeout: the practice game books it and the next player is up.
One after the other: a moment that happens while an effect plays waits for it, and each effect restores the lights it found. Up to nine moments wait, enough for the match that wins a tournament with its personal bests and achievements. The automation runs in queued mode, because a restarted effect would never restore the lights and parallel effects would mix on the same lights.
The daily goal is reached with a dart in the middle of a visit, so its effect never pauses the detection: the rest of the visit still counts.
The end of a training session stops the board: the training session routine turns the detection off. A session that ends while an effect plays ends the effect at once, so the lights come back before the routine's actions for the end of the session, and the detection stays off. A new session keeps the board running: the effect plays to its end, and the detection starts again. A new best session average comes when a session ends; its effect plays, but never pauses the detection, because the pause would start it again afterwards.
Takeout and board clear set a look of their own, for example a bright board light while you pull the darts and your normal light afterwards. Turn on React to the takeout for them. They are not restored and don't pause the detection; while the setting is off, takeouts never wait in the queue.
The bot: its darts are not in the board, so its moments stay dark unless you turn on Also for the bot. A leg or match it wins in a team match plays anyway.

Weekly report on your phone¶

Replace the Notification actions of the weekly report with a notification of the Home Assistant app:

action: notify.mobile_app_your_phone
data:
  title: "{{ title }}"
  message: "{{ message }}"

The ready-made summary reads, for example: 312 darts in 95 minutes at the board, 3 sessions. 3-dart average 54.2 (+2.1 on the week before). Best visit 140, 1 × 180. Checkout rate 31.2 %. 4 days in a row. 2 new personal bests. Parts without a value, such as a week without 180s, are left out.

For a report in another language, write your own Title and Message. In German, in the YAML mode of the automation:

use_blueprint:
  path: autodarts/weekly_report.yaml
  input:
    board_events: event.autodarts_board_events
    report_title: Deine Dartwoche
    report_message: >-
      {{ darts }} Darts{{ ' in ' ~ training_minutes ~ ' Minuten' if training_minutes else '' }}{{ ', 3-Dart-Average ' ~ (average | replace('.', ',')) ~ (' (' ~ ('+' if average_change > 0 else '') ~ (average_change | replace('.', ',')) ~ ')' if average_change is not none else '') if average is not none else '' }}{{ ', ' ~ scores_180 ~ ' × 180' if scores_180 else '' }}{{ ', ' ~ streak ~ (' Tag' if streak == 1 else ' Tage') ~ ' in Folge' if streak else '' }}.

Board events¶

All realtime moments arrive through the Events entity of the board. Each event carries an event_type and its details; see the event reference. The examples use event.autodarts_board_events, the entity ID of a board named Autodarts Board in a Home Assistant set to English. Home Assistant forms entity IDs from the names in its language, so in German, Dutch, French or Spanish the IDs read differently, for example event.autodarts_board_ereignisse in German. A board set up with an earlier version keeps the ID it got then, such as event.autodarts_board_board_events.

Open the entity on the device page to watch the events arrive while you throw; its activity lists every event with the time it happened.

In the automation editor, choose the trigger Event received (Entity → Event), select the Events entity of your board and the event types you want. In YAML:

triggers:
  - trigger: event.received
    target:
      entity_id: event.autodarts_board_events
    options:
      event_type:
        - visit_thrown

A visit of three darts arrives as visit_thrown the moment its third dart lands, and as visit_completed when the darts are pulled. For celebrations and calls, use visit_thrown, and add visit_completed whose thrown attribute is false for visits with fewer darts.

Darts entered or corrected in Home Assistant carry manual: true, and the events of the bot bot: true; see leave the bot out.

Read the details from trigger.to_state.attributes, not from the current state of the entity. Two events can follow each other within milliseconds, for example visit_completed and takeout_finished, and the current state may already show the second one.

Examples¶

The entity IDs in the examples are those of a board named Autodarts Board in a Home Assistant set to English; yours depend on the name of your board and on the language of Home Assistant during setup. You find them on the device page of the board.

Flash the lights for a 180¶

alias: Darts - 180 light show
triggers:
  - trigger: event.received
    target:
      entity_id: event.autodarts_board_events
    options:
      event_type:
        - visit_thrown
conditions:
  - condition: template
    value_template: "{{ trigger.to_state.attributes.get('score') == 180 }}"
actions:
  - action: light.turn_on
    target:
      entity_id: light.dartroom
    data:
      effect: colorloop
  - delay: 10
  - action: light.turn_on
    target:
      entity_id: light.dartroom
    data:
      effect: none
      brightness_pct: 100
mode: single

Light up the board while you pull the darts¶

alias: Darts - takeout light
triggers:
  - trigger: event.received
    id: started
    target:
      entity_id: event.autodarts_board_events
    options:
      event_type:
        - takeout_started
  - trigger: event.received
    id: finished
    target:
      entity_id: event.autodarts_board_events
    options:
      event_type:
        - takeout_finished
actions:
  - choose:
      - conditions:
          - condition: trigger
            id: started
        sequence:
          - action: light.turn_on
            target:
              entity_id: light.board_light
            data:
              brightness_pct: 100
    default:
      - action: light.turn_on
        target:
          entity_id: light.board_light
        data:
          brightness_pct: 60
mode: queued

Notify a camera problem¶

alias: Darts - camera problem
triggers:
  - trigger: state
    entity_id: binary_sensor.autodarts_board_camera_problem
    to: "on"
    for:
      minutes: 2
actions:
  - action: notify.mobile_app_phone
    data:
      title: Autodarts
      message: A board camera delivers no images. Check the camera and its cable.
mode: single

Stop the detection at night¶

alias: Darts - stop detection at night
triggers:
  - trigger: time
    at: "01:00:00"
conditions:
  - condition: state
    entity_id: switch.autodarts_board_detection
    state: "on"
actions:
  - action: switch.turn_off
    target:
      entity_id: switch.autodarts_board_detection
mode: single

Prepare the board when a training session starts¶

Switch on the board light, start the detection and calibrate the cameras when a session starts, and switch everything off when it ends. Turn off Start sessions automatically and start sessions with the Training session switch, for example from the training card. Leave out the calibration when the board's Calibrate on start setting is on, and don't combine this with automations that switch the detection by presence.

alias: Darts - training session routine
triggers:
  - trigger: event.received
    target:
      entity_id: event.autodarts_board_events
    options:
      event_type:
        - session_started
    id: started
  - trigger: event.received
    target:
      entity_id: event.autodarts_board_events
    options:
      event_type:
        - session_ended
    id: ended
conditions:
  # "New training session" ends a session and starts the next one at once.
  - condition: template
    value_template: "{{ trigger.to_state.attributes.get('reason') != 'new_session' }}"
actions:
  - choose:
      - conditions:
          - condition: trigger
            id: started
        sequence:
          - action: light.turn_on
            target:
              entity_id: light.dart_board
          - action: switch.turn_on
            target:
              entity_id: switch.autodarts_board_detection
          # The dart that started a session is still in the board.
          - if:
              - condition: template
                value_template: "{{ trigger.to_state.attributes.get('reason') != 'first_dart' }}"
            then:
              # Give the cameras time to open.
              - delay: 5
              - action: button.press
                target:
                  entity_id: button.autodarts_board_start_automatic_calibration
      - conditions:
          - condition: trigger
            id: ended
        sequence:
          - action: switch.turn_off
            target:
              entity_id: switch.autodarts_board_detection
          - action: light.turn_off
            target:
              entity_id: light.dart_board
mode: queued

Start a new training session every Monday¶

alias: Darts - weekly training session
triggers:
  - trigger: time
    at: "04:00:00"
conditions:
  - condition: time
    weekday: mon
actions:
  - action: button.press
    target:
      entity_id: button.autodarts_board_new_training_session
mode: single

Call the game shot in a practice game¶

Announce a won leg and a bust of the practice game on your speakers, with the name of the player.

alias: Darts - practice caller
triggers:
  - trigger: event.received
    target:
      entity_id: event.autodarts_board_events
    options:
      event_type:
        - leg_won
        - bust
actions:
  - action: tts.speak
    target:
      entity_id: tts.home_assistant_cloud
    data:
      media_player_entity_id: media_player.darts_room
      message: >-
        {% set event = trigger.to_state.attributes %}
        {# In a team match, the team wins the leg. #}
        {% set player = event.team_name or event.name or 'Player ' ~ event.player %}
        {% if event.event_type == 'leg_won' %}
          Game shot, and the leg, {{ player }}, in {{ event.darts }} darts.
        {% else %}
          Bust. {{ player }}, you still need {{ event.remaining }}.
        {% endif %}
mode: queued

Send the summary of a match¶

After a practice match of several players, send every player's numbers to your phone. match_won carries the match summary in summary; X01 has averages and checkouts, Cricket mpr and marks.

alias: Darts - match summary
triggers:
  - trigger: event.received
    target:
      entity_id: event.autodarts_board_events
    options:
      event_type:
        - match_won
actions:
  - action: notify.mobile_app_phone
    data:
      title: "{{ trigger.to_state.attributes.name or 'Player ' ~ trigger.to_state.attributes.player }} wins"
      message: >-
        {%- for player in trigger.to_state.attributes.summary %}
        {{ player.name or 'Player ' ~ player.player }}: legs {{ player.legs }}
        {%- if player.get('average') is not none %}, average {{ player.average }}{% endif %}
        {%- if 'scores_180' in player %}, 180s {{ player.scores_180 }}{% endif %}
        {%- if player.get('checkout_rate') is not none %}, checkout {{ player.checkout_rate }} %{% endif %}
        {%- if player.get('mpr') is not none %}, MPR {{ player.mpr }}{% endif %}.
        {%- endfor %}
mode: queued

Celebrate a personal best and the daily goal¶

alias: Darts - personal best
triggers:
  - trigger: event.received
    target:
      entity_id: event.autodarts_board_events
    options:
      event_type:
        - personal_best
        - daily_goal_reached
actions:
  - action: notify.mobile_app_phone
    data:
      message: >-
        {% set event = trigger.to_state.attributes %}
        {% if event.event_type == 'personal_best' %}
          New personal best: {{ event.record | replace('_', ' ') }} {{ event.value }}
          (before {{ event.previous }}){{ ' by ' ~ event.name if event.name }}!
        {% else %}
          Daily goal reached: {{ event.darts }} darts, {{ event.streak }} days in a row.
        {% endif %}
mode: queued

Count the training sessions of the month¶

The training calendar answers questions about the past, for example in a script:

sequence:
  - action: calendar.get_events
    target:
      entity_id: calendar.autodarts_board_training_calendar
    data:
      start_date_time: "{{ now().replace(day=1, hour=0, minute=0, second=0) }}"
      end_date_time: "{{ now() }}"
    response_variable: calendar
  - variables:
      sessions: >-
        {{ calendar['calendar.autodarts_board_training_calendar'].events
           | selectattr('summary', 'match', 'Training') | list | count }}

Celebrate an achievement¶

A notification with the player, the achievement and its tier. The achievement attribute is the key of the achievement, such as maximum or short_leg; the table there names each one.

alias: Darts - achievement
triggers:
  - trigger: event.received
    target:
      entity_id: event.autodarts_board_events
    options:
      event_type:
        - achievement_unlocked
actions:
  - action: notify.mobile_app_phone
    data:
      message: >-
        {% set event = trigger.to_state.attributes %}
        {% set medal = ['bronze', 'silver', 'gold', 'platinum'][event.tier - 1]
           if event.tiers > 1 else 'unlocked' %}
        {{ event.name }}: {{ event.achievement | replace('_', ' ') }}, {{ medal }}!
mode: queued

Start a game by voice¶

The blueprint Start a game by voice does this with sentences in English, German, Spanish, French and Dutch. For sentences of your own, let the action answer: it knows the games by their names in every language of the integration, and with response_variable it tells what started, or what was wrong, in words Assist can say. Keep a fixed word such as "game" before {game}, so the sentence never catches another command of Assist.

alias: Darts - start by voice
triggers:
  - trigger: conversation
    command:
      - "let's play [a] game [of] {game} with {names}"
actions:
  - action: autodarts.start_game
    data:
      game: "{{ trigger.slots.game }}"
      players: "{{ trigger.slots.names | regex_replace(' and ', ' ') | regex_findall('[^ ]+') }}"
    response_variable: result
  - set_conversation_response: "{{ result.message }}"
mode: single

Enter a visit by voice¶

The blueprint Enter darts by voice does this with sentences in English, German, Spanish, French and Dutch. For sentences of your own, in another language for example, let the action answer: with response_variable it says what the visit scored and left and who throws next, or why it was refused. With player, a misheard name never gets the visit.

alias: Darts - a visit by voice
triggers:
  - trigger: conversation
    command:
      - "{name} threw {0..180:score}"
actions:
  - action: autodarts.enter_visit
    data:
      score: "{{ trigger.slots.score }}"
      player: "{{ trigger.slots.name }}"
    response_variable: result
  - set_conversation_response: "{{ result.message }}"
mode: queued

Announce the results of a tournament¶

Call every result of a tournament, the next match and the winner on your speakers.

alias: Darts - tournament announcer
triggers:
  - trigger: event.received
    target:
      entity_id: event.autodarts_board_events
    options:
      event_type:
        - tournament_match_finished
        - tournament_finished
actions:
  - action: tts.speak
    target:
      entity_id: tts.home_assistant_cloud
    data:
      media_player_entity_id: media_player.darts_room
      message: >-
        {% set event = trigger.to_state.attributes %}
        {% if event.event_type == 'tournament_finished' %}
          {{ event.winner }} wins the tournament, ahead of {{ event.runner_up }}!
        {% else %}
          {{ event.winner }} beats {{ event.loser }},
          {{ event.legs | max }} legs to {{ event.legs | min }}.
          {% if event.next %}Next up: {{ event.next | join(' against ') }}.{% endif %}
        {% endif %}
mode: queued

Enter a visit by hand¶

For a player without cameras, or a board with the detection switched off: a script enters a whole visit, for example "T20 T20 S20" from a text field on the dashboard or from Assist, and passes the turn. Switch on Practice manual entry first; the darts count like detected darts and are marked manual.

script:
  darts_enter_visit:
    alias: Darts - enter a visit by hand
    fields:
      darts:
        description: The beds of the visit, for example T20 T20 S20
        example: T20 T20 S20
        selector:
          text: {}
    sequence:
      - repeat:
          for_each: "{{ darts.split() }}"
          sequence:
            - action: autodarts.throw_dart
              data:
                segment: "{{ repeat.item }}"
      - action: autodarts.next_player
    mode: single

A button on the dashboard takes back the last visit, for a wrong reading noticed after the darts were pulled; the scoreboard has one built in:

type: button
name: Undo last visit
icon: mdi:undo
tap_action:
  action: perform-action
  perform_action: autodarts.undo_visit
  confirmation:
    text: Take the last visit back?

Leave the bot out¶

The darts of the bot fire the usual events with bot: true, and its seat has no name. The blueprints know it:

The visit score and the light show leave the bot out; turn on Also for the bot to include it.
The highlight photo takes no photo of the bot's darts, which are not in the board.
The callers call the bot by the Word for the bot, "Bot" by default, like the scoreboard.

An automation made from a blueprint takes no conditions of its own unless you take control of it, so use these settings there. To celebrate only your own visits in an automation of your own, add a condition:

conditions:
  - condition: template
    value_template: "{{ not trigger.to_state.attributes.get('bot', false) }}"

Online matches (experimental)¶

In online matches on play.autodarts.io, your own darts arrive as usual. Busts, won legs and matches and the darts of your opponents arrive through the optional online bridge and the browser extension Tools for Autodarts, as board events whose type starts with online_. The online matches guide explains how to set it up.

Adapting automations from older versions¶

Automations that celebrate a 180 or call a visit on visit_completed react only when the darts are pulled. Switch them to visit_thrown to react the moment the third dart lands, as in the examples.

Since version 1.0, the Detection status sensor reports translatable states: stopped, throw, takeout_in_progress and so on. Older versions reported the raw text of the Board Manager, such as Stopped or Takeout in progress. Update automations that compare against the old text:

Before	Now
`Stopped`	`stopped`
`Starting`, `Stopping`	`starting`, `stopping`
`Throw`	`throw`
`Takeout`, `Takeout in progress`	`takeout`, `takeout_in_progress`
`Calibrating`	`calibrating`
`Error`	`error`

The UI shows these states in your language. The Last event sensor still reports the raw Board Manager text. It is a diagnostic sensor now and, like CPU usage, starts disabled on a board set up with version 1.6.0 or later: enable it on the device page before an automation uses it. Boards set up before keep both entities as they are.
