Scoreboard at the board

← Documentation · Deutsch

A tablet or a TV next to the board turns your darts room into a stage: the score large enough to read from the oche, the checkout route of the player at the board, the next game or a whole tournament chosen right there, a caller, and between games a leaderboard. Everything runs in Home Assistant; the screen only needs a browser.

Animation: the scoreboard during a 501 match. The turn passes between Alex and Sam after every visit, and Alex checks out 141 with T20 T19 D12 to win the match

On this page: What you need · Set up the screen · Landscape, portrait and TV · Choose the next game · During the game · Correct and enter darts · Tournaments · The caller · Between games: idle mode · Tips · If something is off

What you need

  • A screen with a browser: a tablet on the wall, a TV with a browser or a small PC, an old phone. Anything that opens your Home Assistant works.
  • A Home Assistant user for the screen. A user of its own, without administrator rights, keeps the screen from changing your settings. The screen shows the dashboard in that user's language: English, German, Dutch, French or Spanish, other languages in English.
  • The integration's cards, which load by themselves. There is nothing to install on the screen.

Set up the screen

  1. Create the dashboard. Go to Settings → Dashboards → Add dashboard → Autodarts. The automatic dashboard has a Scoreboard view that shows the scoreboard card across the whole screen.
  2. Open the view on the screen. Sign in as the screen's user and open the dashboard's Scoreboard view. Its address ends in /scoreboard, with several boards in /scoreboard-1, /scoreboard-2 and so on; bookmark it or put it on the home screen of the tablet.
  3. Go full screen. Use the browser's full-screen mode or a kiosk browser that opens the address at start. Keep the screen awake while it is on the charger, in the settings of the tablet or the kiosk browser.
  4. Switch on what you like. Open the dashboard's menu (⋮) → Edit dashboard. In the section Scoreboard view, switch on the caller and the keypad, and choose the games of the new game screen and the panels of idle mode; the dashboard stays automatic and gets the views of later releases. For every other option, build a view of your own: a view in panel mode with the scoreboard card and full_height: true, or choose Take control in that editor's menu, which turns the dashboard into one you edit yourself:
type: custom:autodarts-scoreboard-card
full_height: true
caller: true
lobby_games: ["301", "501", cricket, killer, around_the_clock]
idle_after: 300
idle_panels: [leaderboard, today, last_match, clock]

The card guide lists every option.

Landscape, portrait and TV

The scoreboard adapts to the shape of the screen. With full_height: true it is exactly the screen below the toolbar: a banner, the visit or the keypad make the numbers and tables smaller instead of pushing the page past the screen, so nothing needs scrolling, from a small 800 × 480 display to a TV. On a phone it leaves room for the browser's address bar, and in the companion app for the status bar and the home indicator.

  • Landscape tablet or TV: the best choice for X01 and the party games, whose player tiles sit side by side.

The scoreboard on a landscape tablet: a 501 team match of Alex and Kim with 45 left against Sam and Lea with 216

  • Portrait tablet: fine for Cricket, whose chalkboard is tall, and for X01: two players stand one above the other, three or four two by two, and the scores use the height of the screen.

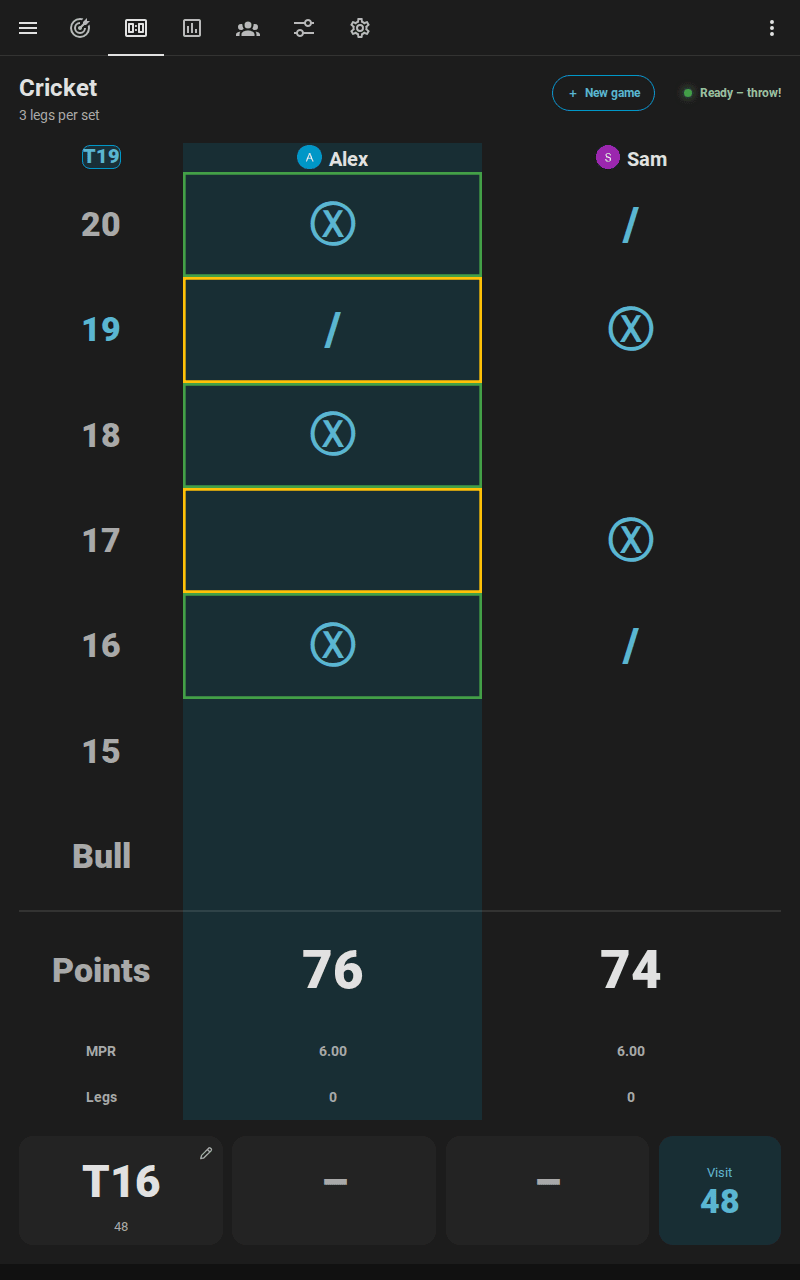

The scoreboard on a portrait tablet: the Cricket chalkboard of Alex and Sam with T19 as the next target and the current visit along the bottom

  • Phone: everything fits one screen, upright or on its side. With the keypad or the board to tap, every player's score becomes one line, so all scores stay in sight; on its side, the keypad takes the right half of the screen from top to bottom. To correct a dart, the board opens zoomed in, with a loupe under the finger.
  • Touch monitor: on a 24 or 27 inch touch screen beside the board, every button is large enough for a finger, also with a mouse plugged in, and the board to tap has the loupe and the two-finger zoom of a phone.
  • Distance: the remaining score is the largest text on the screen and grows with it. The bigger the screen, the farther away it reads, so a TV also serves the people watching.

Choose the next game

Tap New game below the score between games, or at the top right during a game. The screen also opens by itself a few seconds after a match or a training game ends, with the last choice ready for a rematch; a dart thrown instead closes it again.

Animation: on the tablet, New game opens the screen, Cricket is chosen, Sam joins Alex, the legs per set go up to three and the game starts on the scoreboard

  1. Game: X01, the Cricket games, the party games and the training games, grouped. lobby_games limits the choice to the games you play. Below the games, How to play explains the chosen game in a sentence or two, for guests who have never played it, and All rules opens its rules on the documentation website.
  2. Players: tap a name to add the player, ▲ and ▼ to change the order, ✕ to remove them. Players linked to a person who is at home come first, with their picture. Type a new name, or add a guest without one. In X01, − and + beside a player set a start score of their own. In X01 and the Cricket games, + Bot seats the bot after the players; − and + beside it change its level.
  3. Format and options: legs per set and sets to win; double out and double in for X01; the bull-off; Teams for four players of X01 or Cricket; Three in a bed for Wild Mouse.
  4. Start. The scoreboard shows the game at once. If detection is stopped, the start switches it on, and the screen says so above the button beforehand. The start button stays at the bottom of the screen while the page scrolls. During a game, End game stops it after a second tap.

The new game screen on a landscape tablet: the games by group with 501 chosen, Alex and Sam with their pictures, Sam starting from 301, three legs per set, double out and the start button

The screen starts the game with autodarts.start_game, exactly like an automation or a voice command would. The games guide shows the other ways.

During the game

The scoreboard always shows what is being played, and the player at the board is outlined:

Game The scoreboard shows
X01 Every player's or team's remaining score, legs, sets and average; the checkout route, a bust or the game shot of the player at the board, and where no checkout exists the setup with the score it leaves
Cricket games A large chalkboard with the marks of every player or team, the points and the marks per round; the next open number in the top-left corner, and frames where the player at the board scores or had better close
Party games The round and the target, every player's points, in Killer their number and lives, in Golf and Baseball a scorecard of every hole or inning
Bull-off The bed of every player's dart and its distance from the center, the dart that leads, and Tie – throw again when a tie throws again
Training games The target in large type with the round, the points or the hit rate

Along the bottom it shows the three darts of the current visit and their score, and while the board is empty the last visit; a tap on a dart corrects it. Nothing moves while you play: the tiles keep their height from the first dart to the game shot. Big moments are celebrated on top, without moving anything and gone after two seconds and a half: confetti and a golden glow for a 180, confetti for a game shot and the match, and a glow for a visit of 100 or more and for nine marks in Cricket; celebrations: false switches them off, and with reduced motion in the system they stay away. When a match is decided, a banner names the winner with the result, for example Alex wins the match 3 : 2!, and after an X01 or Cricket match the match summary takes the place of the players: averages, checkout rate, highest checkout, 180s and the best leg of everybody.

Animation: a 180 on the scoreboard. Alex throws three triple 20s, a golden glow lights up the scoreboard and confetti flies from its middle, then the scoreboard shows 321 as before

Scoreboard after Alex beat Sam 2 : 1 in 301: the match summary with legs, 3-dart average, first 9, checkout rate, highest checkout, 180s, 140+, 100+, best leg, darts at a double and darts of both players

Every game brings a screen of its own:

  • Killer: every player's lives as hearts, with their number and whether they are a killer, until one player is left.

Animation: Killer for Alex, Sam and Kim on the scoreboard. Everybody throws for a number, Alex becomes a killer and takes Sam's lives, Kim becomes a killer too, and Alex takes the last life to win

  • Cricket: the chalkboard with the marks, the points and the marks per round, and the next target in the top-left corner.

Scoreboard in Cricket between Alex and Sam: the chalkboard with marks, points and marks per round, and T19 as the next target

  • Golf: the hole being played and every player's strokes.

Animation: Golf for Alex and Sam on the scoreboard. After every visit the scorecard fills: Alex plays 2, 3 and 1, Sam 4, 5 and 5, and the fourth hole is under way

  • Catch 40: the score to check out in large type, with the route, the round and the points so far.

Catch 40 on the scoreboard: in the second round a single 12 leaves 50 of 62, the route is the bull, and the first checkout scored 3 points

Correct and enter darts

Animation: the scoreboard shows T20, S20 and T20 for 140; a tap on the second dart opens the pad, a tap on T and on 20 corrects it, and the visit reads 180

  • A dart read wrong: tap it in the visit along the bottom. A pad opens with S, D and T, the numbers 1 to 20, 25, Bull and Miss; tap the multiplier and the number, and the game counts the dart there. A second tap on the dart, or Cancel, closes the pad.
  • Where it really is: choose Board at the top of the pad and tap the spot on the board where the dart is. The bed follows from the spot, and the dart counts there for the dart positions. A dashed ring shows where the board saw it. Corrected with the keys, the dart has no position, so a misread spot never spoils the grouping.

Animation: the board read the second dart as T20 for 180; a tap on it opens the pad, Board shows the board with a dashed ring where the board saw the dart, and a tap on the single 20 above it corrects the visit to 140

  • On a phone: the board opens zoomed in around where the board saw the dart, so a fingertip finds the right bed. Hold a finger on the board and slide it: a loupe above the finger shows the spot enlarged with a cross, and the dart goes where the finger lets go. Two fingers zoom further and move the board; the round magnifier in the board's corner shows all of it with its minus and zooms back in with its plus.

Animation on a phone: the board read the second dart as T20 for 180; a tap on it and on Board opens the board zoomed in around the dashed ring where the board saw it; a finger slides up from the ring, the loupe above it shows the single 20 under a cross, and where the finger lets go the visit becomes 140

  • A visit noticed too late: after the takeout, the tile Last beside the darts shows the last visit with a curved arrow; a tap on it and a second one on the red Undo? take it back. Correct its darts, then end it with Next player.
  • Darts entered by hand: for darts the board missed, or a player without cameras, switch on Practice manual entry and the card's keypad option. The keypad enters every tapped bed as a dart; Next player ends the visit. On a landscape screen, the pad and the keypad sit beside the scores, so both fit the screen. A dartboard without Autodarts has the keypad without either.
  • The score of a visit: in X01, Score at the top of the keypad takes a visit as its score, such as 140, with OK; a checkout asks for its darts and the darts at a double. With a keyboard, type the score and press Enter, and a digit answers a question; the pad keeps the keys for the next visit. How it counts.
  • What you see: a pencil marks every dart that a tap corrects; darts entered or corrected by hand get a dashed frame, and the bot's darts a tint of the accent color.

The scoreboard with the keypad: Alex has entered T20 and S19 by hand, marked with dashed frames; below, S, D and T, the numbers 1 to 20, 25, Bull, Miss and Next player

The games guide explains what a correction changes, all details are in the card guide.

Tournaments

For a tournament of three to eight players, the screen at the board runs the evening:

  1. Start it here: tap New game, then Tournament. Choose up to eight named players, X01 with start scores for a handicap or a Cricket game, round robin or knockout, legs and sets, the rules, the match for third place and a random draw, and tap Start tournament.
  2. During a match, the title line names the round and the match, for example Tournament · Semi-final · Match 5 of 7.
  3. Between the matches, the summary of the match stays for a few seconds, then the table of a round robin or the bracket of a knockout shows, with the next match and a countdown. Start now starts it at once; otherwise it starts by itself as soon as the darts are out of the board.
  4. At the end, a banner names the winner of the tournament, and the table or the bracket stays until a new match begins. Stop tournament on the new game screen ends a tournament early. Starting a new tournament while one is played stops that one first, after a second tap.

Tournament on the new game screen sets up the players, the game, the format and the rules:

The new game screen in tournament mode: X01 and the Cricket games, six players with their start scores, knockout with the match for third place, and the start button

Between two matches, the next match waits with its countdown above the table of a round robin:

The round robin of four players on the scoreboard between two matches: next up Lea against Sam with a countdown, and the table with Alex first on 4 points

The table ranks by points, two for a win, then by the tie-breakers of the tournament rules. In the bracket, a player who goes on slides into the next round. All details.

The caller

With caller: true, the screen at the board calls the game itself, through the speaker of the tablet or the TV. It needs no speakers or text-to-speech in Home Assistant.

  1. Switch on caller in the card's editor, or for the automatic dashboard in its settings: menu (⋮) → Edit dashboard → Scoreboard view.
  2. Browsers play sound only after a tap: tap Caller on the scoreboard once. The speaker symbol and the pressed button show that it is on; tap again to mute it.

It calls only what counts, in the language of the screen's user: English, German, Dutch, French or Spanish.

  • X01: the points of a visit, "No score" for a bust or a visit before the opening double, "you require 81" whenever the remaining score can be finished, "leave yourself 32" when only a setup is possible, the game shot of a leg and the match, and a fanfare for a 180. The bot is called Bot.
  • Cricket games: the marks of a visit, such as "5 marks". Shanghai and Halve-It: the points on the target; Count-Up: the points of the visit; Baseball: the runs.
  • Checkout training, 121 checkout and Catch 40: what the next attempt requires.
  • Tournaments: every match as it starts, "Next match: Alex against Sam", and the winner of the tournament.
  • Darts after a bust or a game shot are not called. Killer, Golf and the other training games get no score calls.

A screen that was away, on another view or without its connection to Home Assistant, calls and celebrates nothing that happened meanwhile, such as a match that ended in the minutes before; it calls the game again from its return.

call_scores, call_checkouts, call_results and call_sounds switch each kind of call on or off. Which voice speaks depends on the browser and the operating system: offline voices of the operating system keep the calls in your home; some browsers use online voices that send the text to their provider. For speakers in the room, use the dart caller and practice caller blueprints instead.

Between games: idle mode

When no game runs, or a match or training game is decided, and nobody throws or taps for idle_after seconds (3 minutes by default), the scoreboard shows its panels in turn: the table or bracket of a tournament, the leaderboard, the personal bests of the board, today's darts towards the daily goal, the last match and a clock.

Idle mode of the scoreboard: the leaderboard with Alex, Sam and Kim, their pictures, 3-dart averages and legs won

A dart, a new game or a tap anywhere ends idle mode; a new game screen you had opened comes back as you left it. idle_panels chooses the panels and their order, idle_interval how long each one shows. On devices set to reduce motion, the panels change without fading. All panels.

Tips

  • The live card on a second screen: a phone or a second tablet with the live card shows the board with every dart where it landed, next to the scoreboard.
  • Pictures of the players: link the players to persons of Home Assistant; the scoreboard, the new game screen and idle mode show their pictures, and players who are at home come first.
  • Light and sound: the light show and the practice caller react to the same game, with the lights and speakers of your home.
  • Several boards: every board gets its own Scoreboard view in the automatic dashboard; choose the board in the card's editor for a view of your own.
  • Accessibility: the scoreboard follows your theme with text that stays readable in its colors, announces the winner to screen readers, marks the player at the board, reads the Cricket marks as words and Killer's hearts as lives, keeps the focus on the button you pressed, and when the device asks for reduced motion, it fills the tournament bracket without sliding and changes the panels of idle mode without fading. Accessibility.

If something is off

What you see What helps
Darts are not counted Detection is stopped: the status at the top right says Detection stopped. The new game screen's start switches it on; otherwise switch it on with the board status card or the live card. Also check that Practice game is not Off and that no online match holds the board.
The caller stays silent Tap Caller once after every reload of the page: browsers play sound only after a tap. Check the volume of the device.
The new game screen does not open It never opens in the preview of the card editor, and not with lobby: false.
The screen shows an old version of the card after an update Reload the page. In the Home Assistant app, use Settings → Companion app → Debugging → Reset frontend cache.
Idle mode starts during a game Idle mode waits for idle_after seconds without darts and taps, and only when no game runs or the game is decided. Raise idle_after, or set idle: false.
A tap on a dart does nothing The dart belongs to the bot, the card has corrections: false, or it is the preview of the card editor.
The keypad does not show It needs the card's keypad: true (in the automatic dashboard: its settings, Scoreboard view) and Practice manual entry on, and it waits while the bot is at the board. On a dartboard without Autodarts it always shows, unless the card sets keypad: false.
No picture next to a name The player is not linked to a person, or the person has no picture. See players and persons.

More help: troubleshooting.
